Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket

Model No.︰FHG.EGG.3**.CLA
Brand Name︰greatmade
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 46 Related Items
12345Next

Product Description

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

FHG.2B.3**.CLAD=Elbow plug with key (G) and cable collet,2B series, multipole type with ** contacts, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet

EGG.2B.3**.CLAD=fixed socket with key (G) and cable collet, 2B series, multipole type with** contacts, outer shell in chrome-plated brass, PEEK insulator, female solder contacts, D type collet



Product details

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal ConnectorCompatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

 Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal ConnectorCompatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

Product characteristics

1.      This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space

2.      Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.

3.      Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.

4.      Customization services, you can choose the series (size) you need and the number of needles you want

5.      Made of metal, high quality and durable.

6.      About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion

7.      B series belongs to the standard keyed Series, Ingress protection is IP50, suitable for indoor use.

8.      K series belongs to the watertight keyed Series, Ingress protection is IP 66 to IP68, suitable for outdoor use.

Sizes and contacts

Customization services, you can choose the series (size) you need and the number of contacts you want.

We have different sizes: 00B, 0B, 1B , 2B and 3B etc. (Just means sizes)

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

There are many kinds of contacts in each series.

You can order from us according to your requirements.

l  Different Series Connector Pins Number :

1.        00B Series:2 pins , 3 pins,  4 pins ,5 pins

2.        0B Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,9 pins

3.        1B Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,8 pins, 10 pins ,12 pins , 14 pins,  16 pins

4.        2B Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,8 pins, 10 pins ,12 pins , 14 pins,  16 pins , 18 pins,  19 pins

5.        3B Series:3 pins,  4 pins ,  7 pins ,8 pins, 10 pins ,12 pins , 14 pins,  16 pins , 18 pins,  20 pins , 24 pins,  26 pins , 30 pins

6.        0K Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,9 pins

7.        1K Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,8 pins,  10 pins ,14pins , 16 pins

8.        2K Series:2 pins , 3 pins,  4 pins ,5 pins , 6 pins,  7 pins ,8 pins,  10 pins , 12pins , 14pins , 16 pins,  18 pins ,19 pins

9.        3K Series:2 pins ,  4 pins , 6 pins, 8 pins,  10 pins , 12pins , 14pins , 16 pins,  18 pins ,20 pins

 Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

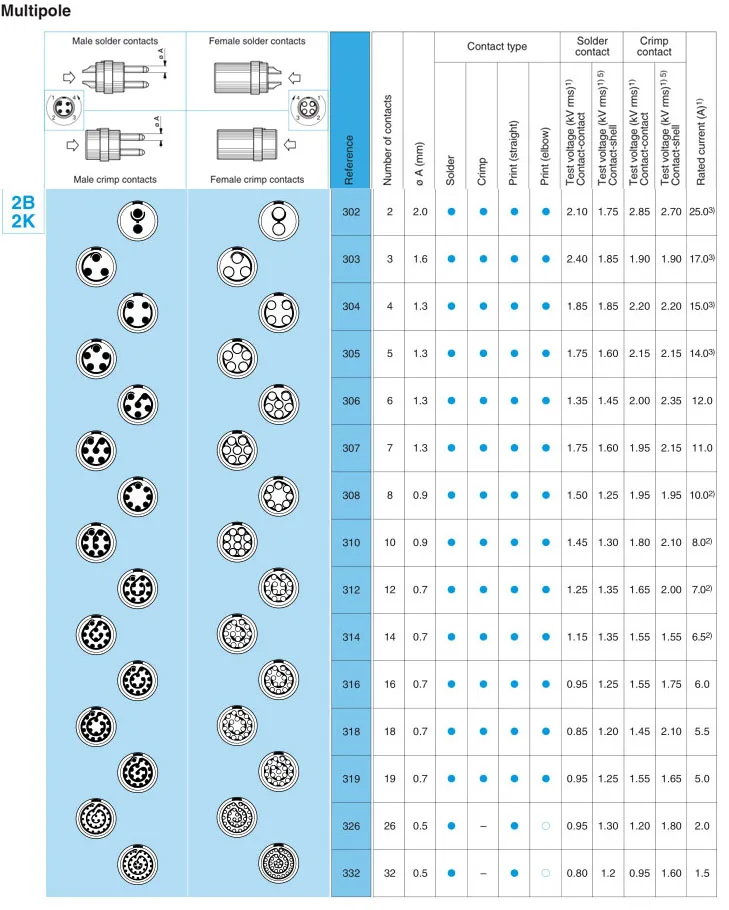

Multipole

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector



Contact type

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector



Soldering characteristics

– no need to order specific tools, a simple soldering iron is sufficient

– ideal for very small and fragile conductors

– contacts with solder cups to allow the solder to flow



Key

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

eg: Key(G)stands for 1 key

Key(A,B,C,D,E,F,,J,K,L,M)stands for 2 keys with different angles

 Key(Y)stands for 3 keys



Internal structure

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

We have " with bend relief " and " without bend relief  " styles ,normally we will sent " with bend relief ", if you want " without bend relief " style,pls tell us.

scope of application

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

usage: beauty equipment; medical devices; various high-end test equipment; micro drones; detection equipment; video equipment; visual equipment; military communication equipment, mobile equipment, etc. are widely used

All products of metal connectorsCompatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

The features of B series connectors:

security of the Push-Pull self-latching system

multipole types 2 to 64 contacts

solder, crimp or print contacts (straight or elbow)

high packing density for space savings

multiple key options to avoid cross mating of similar connectors

keying system («G» key standard)for connector alignment

360° screening for full EMC shielding.

Compatible FHG EGG 2B 2 3 4 5 6 7 8 10 12 16 19 Pins Elbow Plug/Fixed Socket Push-Pull Metal Connector

K series connectors have been specifically designed for outdoor applications.

They include an inner sleeve and two seals to prevent penetration of solids or liquids into the housing formed by the plug,free socket, fixed socket or coupler. All models of this series are watertight when mated to give a protection index of IP68as per IEC 60529 standard (in mated condition) when correctly assembled to an appropriate cable (IP66 otherwise).

The features of K series connectors:

security of the Push-Pull latching system – watertight connection (IP 68/IP 66)

multipole types 2 to 64 contacts – solder, crimp or print (straight or elbow) contacts

keying system («G» key standard) for connector alignment

multiple key options to avoid cross mating of similar connectors

360° screening for full EMC shielding – high packing density for space savings

rugged housing for extreme working conditions.
